101 ACTUATOR STD 12V

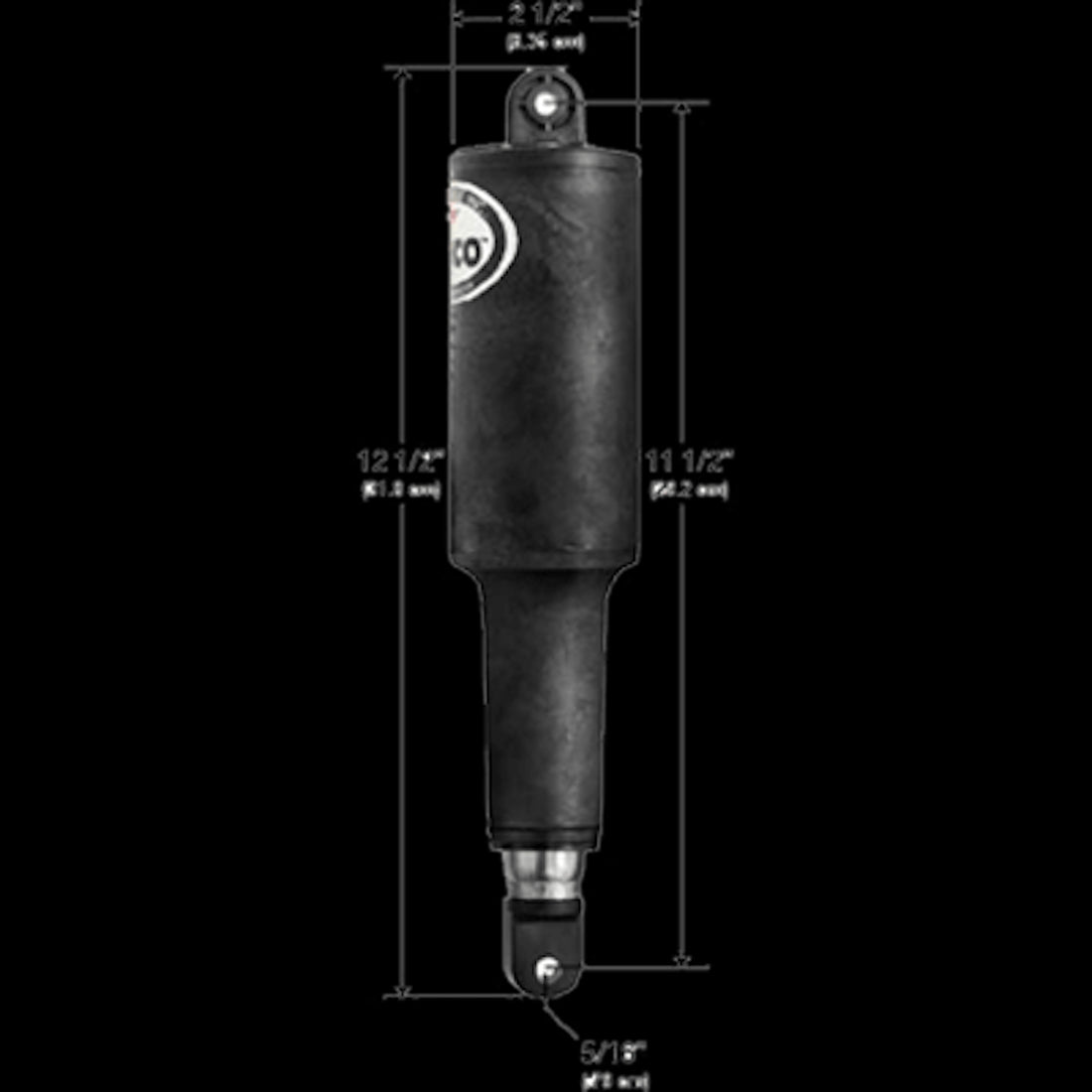

Features Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing; Corrosion proof vandar mounts; Stainless steel ram won't flex, even under extreme loads; Double o-ring for maximum protection; Ball screw rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutches; Self-locking ball screw locks into position and will not drift; Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life; Tough, high-torque motor easily transfers 750 lbs; High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing; Corrosion proof vandar cap and mount, stands up to severe loads; 5/16 in. Mounting hardware; Stroke - 2-1/4 in.; Length overall - 12-1/8 in.; Length pin to pin - 11-1/2 in.; Diameter - 2-1/2 in.; Item weight - 4.00 lbs.;.
